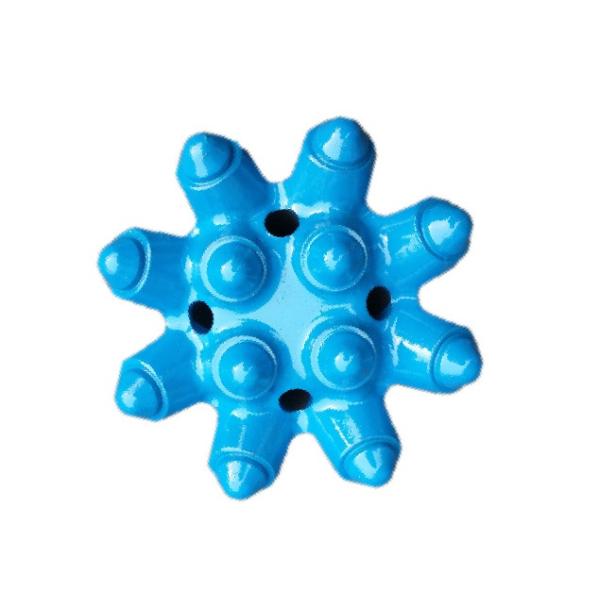

Rock Drilling Tools T45 / T51 Button Drill Bit Diameter 102mm With Carbide
Specifications
1) Thread connection: R22, R25, R28, R32, R38, T38, T45, T51, ST58, ST68, GT60 .
2) Steel material: 45CrNiMoV.
3) Suitable carbide tips.
4) Bits diameter: 30-127mm.
Usage:drilling in ore field,
suitable even for harsh enviroment works;
Selling Point: Quality certified;
Competitive prices;
Brand Name effect;
Nice after-sales services;
Description
<
| T38 button bit | | | | |
| | Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight |
| | mm | Front | Gauge | Front | Side | kg |
| 1 | 64 | 3×10, 1×10 | 6×11 | 3 | - | 1.8 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 2.6 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 3 | 1 | 2.6 |
| 4 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 3.3 |
| T45 button bit | | | | |
| | Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight |
| | mm | Front | Gauge | Front | Side | kg |
| 1 | 70 | 3×11, 1×19 | 6×11 | 3 | - | 2.2 |
| 2 | 76 | 3×11, 1×11 | 6×13 | 3 | - | 2.4 |
| 3 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 4.1 |
| 4 | 102 | 3×13, 2×13 | 6×14 | 3 | 1 | 4.5 |
| T51 button bit | | | | |
| | Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight |
| | mm | Front | Gauge | Front | Side | kg |
| 1 | 89 | 3x11, 2x11 | 6x13 | 4 | - | 4.9 |
| 2 | 102 | 3x13, 2x13 | 6x14 | 3 | 1 | 5.2 |
| 3 | 115 | 6x14 | 8x14 | 2 | - | 6.8 |
| 4 | 127 | 4x16, 2x13 | 8x16 | 4 | - | 7.5 |
Company Profile:
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
- Hazardous environment
- Acts, regulations, and other government guidelines that has to be followed
- Significant differences in the way people work, mostly due o physical constraints
- Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver
