CIR90 Down Hole Hammer With Low Air Pressure For Geological Drilling DTH Hammers

Name: CIR90 Down Hole Hammer With Low Air Pressure For Geological Drilling DTH Hammers
Brand: MIROC
Price: 1 USD

Quality CIR90 Down Hole Hammer With Low Air Pressure For Geological Drilling DTH Hammers for sale

Brand Name : MIROC

Model Number : CIR90

Certification : API

Place of Origin : China

MOQ : 1 Piece CIR90 DTH Hammer

Price : Negotiation

Supply Ability : 2000 pieces per month

Delivery Time : 25 days

Packaging Details : Wooden Box

Name : DTH Hammer

Series : CIR90

Length : 800mm

Type : No Foot Valve

Use : Tunneling, Mining,Quarrying,Water Well

Color : Green,Black ,Orange ,Blue,Golden

Contact Now

CIR90 DTH Hammer with low air pressure 0.5-0.7MPa Geological Drilling DTH Hammers

Specification:

standard type, no foot valve
length: 800mm
external diameter: 80mm,
drilling hole range: 85mm-110mm,
working pressure: 0.5-0.7MPa,
air consumption: 0.7MPa 8m³/min
weight: around 20kg

Drilling Diameter(mm)	Hammer Length(mm)	External Diameter(mm)	Weight(kg)
φ85-φ110	800(without bit)	80	20(without bit)
Working Pressure(Mpa)	Air Consumption(m³/min): 0.7Mpa: 8m³/min
0.5-0.7	Bit Shank		CIR 90

CIR90 DTH Hammer with high air pressure 0.6-1.5MPa

length: 770mm
external diameter: 80mm, drilling hole range: 88-110mm
working pressure: 0.6-1.5Mpa
air consumption: 0.8Mpa 4m3/min
bit shank: Cir90
weight: around 20kg

Drilling Diameter(mm)	Hammer Length(mm)	External Diameter(mm)	Weight(kg)
φ88-φ110	770(without bit)	80	20(without bit)
Working Pressure(Mpa)	Air Consumption(m³/min): 0.8Mpa: 4m³/min
0.6-1.5	Bit Shank		CIR 90

Product	DTH Button Bits
Low Air Pressure	CIR80, CIR90
3’’	DHD3.5, M30,
4’’	DHD340, SD4,QL40, M40
5’’	DHD350, SD5,QL50, M50
6’’	DHD360, SD6,QL60, M60
8’’	DHD380, SD8,QL80, M80
Color	Green, Gold, Black or based on customer requirements.
MOQ:	No MOQ required for testing and trial order

Advantages:

1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD series DTH hammer designed according to newest rock drilling theory.

2. Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.

3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.

4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.

5. Interchangeable with DTH bit and drill pipe

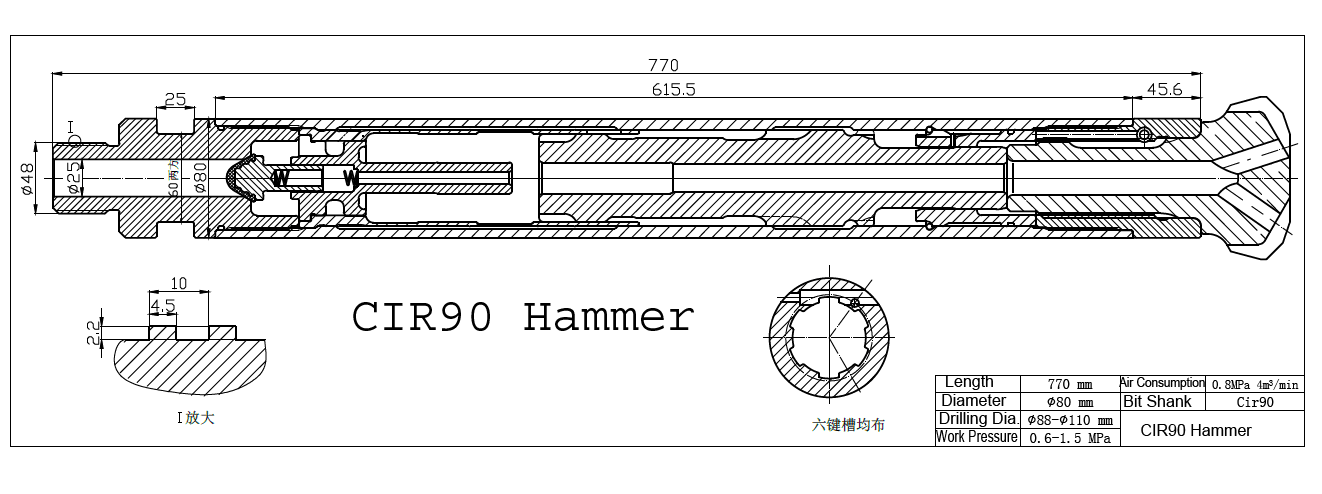

CIR90mm High Air Pressure DTH Hammer Basic Drawing:

CIR90 DRILL BIT

CIR90 Down Hole Hammer With Low Air Pressure For Geological Drilling DTH Hammers
